- Drive Type: Cable & Chain
- Weight Requirement: If pendulum bob diameter is 6.5” or less then 2 light weights and one heavy. or If pendulum bob diameter is larger then 6.5” then two heavy weights and one light.
- Plate Dimension: 130mm x 130mm or 5in x 5in
Part #
UM32331
Description

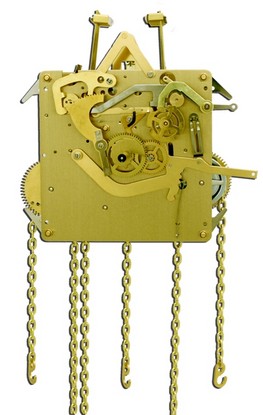

32331 Urgos Movement - Hand Shaft Length 37mm - Movt Pdl Length 106cm - Triple Chime - Drive type chain
Movt Pdl Length (CM)
106cm
Hand Shaft Length
37mm
Hammer Location
Back
BPH
3728
Chime Type
Triple
Drive Type
Chain
Plate Dimension
130mmx130mm or 5in x 5in
Sec Hand Feat
Yes
Wts Req (lbs)
4.7 & 6.6
