- Drive Type: Cable & Chain
- Weight Requirement: If pendulum bob diameter is 6.5” or less then 2 light weights and one heavy. or If pendulum bob diameter is larger then 6.5” then two heavy weights and one light.
- Plate Dimension: 130mm x 130mm or 5in x 5in
Part #
UM32363
Description

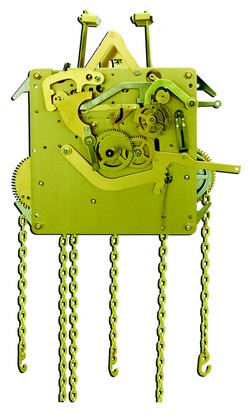

32363 Urgos Movement - Hand Shaft Length 65mm - Movt Pdl Length 80cm - Triple Chime - Drive type chain - ** made in Low Bridge version
Movt Pdl Length (CM)
80cm
Hand Shaft Length
65mm
Hammer Location
Back
BPH
4320
Chime Type
Triple
Drive Type
Chain
Plate Dimension
130mmx130mm or 5in x 5in
Sec Hand Feat
Yes
Wts Req (lbs)
4.7 & 6.6
